防止apk被反编译(转)

发布日期:2012-10-22 16:41:11

作为Android应用开发者,不得不面对一个尴尬的局面,就是自己辛辛苦苦开发的应用可以被别人很轻易的就反编译出来。

Google似乎也发现了这个问题,从SDK2.3开始我们可以看到在android-sdk-windows\tools\下面多了一个proguard文件夹

proguard是一个java代码混淆的工具,通过proguard,别人即使反编译你的apk包,也只会看到一些让人很难看懂的代码,从而达到保护代码的作用。

下面具体说一说怎么样让SDK2.3下的proguard.cfg文件起作用,先来看看android-sdk-windows\tools\lib\proguard.cfg的内容:


-optimizationpasses 5

-dontusemixedcaseclassnames

-dontskipnonpubliclibraryclasses

-dontpreverify

-verbose

-optimizations !code/simplification/arithmetic,!field/*,!class/merging/*



-keep public class * extends android.app.Activity

-keep public class * extends android.app.Application

-keep public class * extends android.app.Service

-keep public class * extends android.content.BroadcastReceiver

-keep public class * extends android.content.ContentProvider

-keep public class * extends android.app.backup.BackupAgentHelper

-keep public class * extends android.preference.Preference

-keep public class com.android.vending.licensing.ILicensingService



-keepclasseswithmembernames class * {

   native;

}



-keepclasseswithmembernames class * {

   public(android.content.Context, android.util.AttributeSet);

}



-keepclasseswithmembernames class * {

   public(android.content.Context, android.util.AttributeSet, int);

}



-keepclassmembers enum * {

   public static **[] values();

   public static ** valueOf(java.lang.String);

}


-keep class * implements android.os.Parcelable {

 public static final android.os.Parcelable$Creator *;

}


从脚本中可以看到,混淆中保留了继承自Activity、Service、Application、BroadcastReceiver、 ContentProvider等基本组件以及com.android.vending.licensing.ILicensingService,

并保留了所有的Native变量名及类名,所有类中部分以设定了固定参数格式的构造函数,枚举等等。(详细信息请参考/examples中的例子及注释。)

让proguard.cfg起作用的做法很简单,就是在eclipse自动生成的default.properties文件中加上一句“proguard.config=proguard.cfg”就可以了

完整的default.properties文件应该如下:



# This file is automatically generated by Android Tools.

# Do not modify this file -- YOUR CHANGES WILL BE ERASED!

#

# This file must be checked in Version Control Systems.

#

# To customize properties used by the Ant build system use,

# "build.properties", and override values to adapt the script to your

# project structure.



# Project target.

target=android-9

proguard.config=proguard.cfg

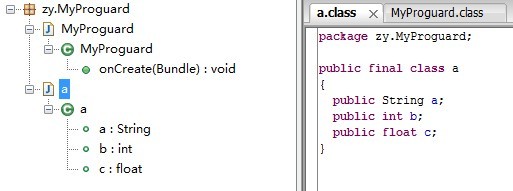

大功告成,正常的编译签名后就可以防止代码被反编译了。反编译经过代码混淆的apk得到的代码应该类似于下面的效果,是很难看懂的:








如果您使用的是2.3之前的SDK版本也没关系,把上面的proguard.cfg文件复制一份放到项目中,然后进行相同的操作即可

原文出处:http://blog.csdn.net/sunboy_2050/article/details/6727640
